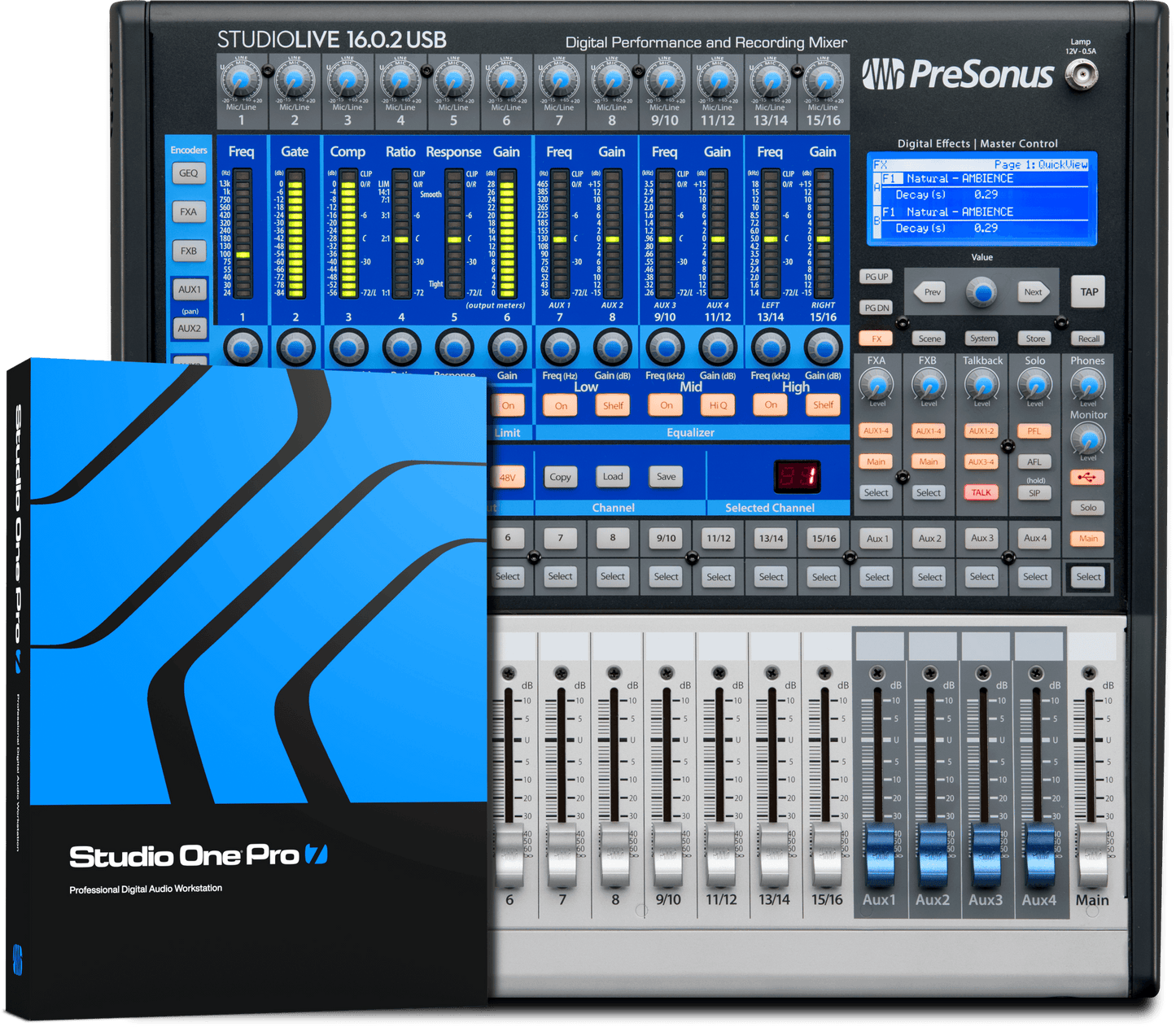

StudioLive® Classic 16.0.2 USB Digital Console Mixer
StudioLive® Classic 16.0.2 USB Digital Console Mixer
SKU: 2779200501
通常価格
¥176,400
通常価格
¥176,400
セール価格
¥176,400
単価
あたり
Our classic StudioLive 16.0.2 digital console mixer with USB 2.0 connectivity for small churches, schools, bands, clubs, and studios.
詳細を表示する
StudioLive® Classic 16.0.2 USB Digital Console Mixer
通常価格
¥176,400
通常価格
¥176,400
セール価格
¥176,400
単価
あたり
Overview
StudioLive® 16.0.2 USBは、小規模な教会、学校、バンド、クラブなど、予算が限られている小規模スタジオに最適です。16チャンネル入力（うち4チャンネルはステレオ・チャンネル、12チャンネルはXMAXマイク・プリアンプ）、内蔵18x16 USB2.0インターフェース、各チャンネルとバスでの広範な信号処理、4つのAuxバス、広範なメーター、シーンと設定の保存／呼び出し、MIDIコントロールなどを装備しています。さらに、軽量でラックマウントが可能。アナログ・コンソールのような操作性でありながら、優れたオーディオ・クオリティを実現しています。また、PreSonusのUC Surfaceコントロール・ソフトウェア、Capture™レコーディング・ソフトウェア、QMix®-UC Auxコントロール・アプリ、Studio One® Artist DAWが付属しています。
Overview
Features
- 8 mono and 4 stereo channel inputs with 60 mm faders (12 faders)
- 4 auxiliary buses (pre/post-fader send) and 2 internal FX buses
- On all channels and buses: 3-band semi-parametric EQ, compressor, limiter, downward expander
- Stereo, 31-band graphic EQ on the main bus
- 18-in/16-out USB 2.0 audio interface (24-bit/44.1 kHz and 48 kHz) records all channels and main L/R mix
- MIDI I/O: control main and effects output levels, recall effects presets and Scenes, and serve as a MIDI interface
- Software library includes PreSonus® Studio One® Artist DAW and Capture™ live-recording software for Mac® and Windows® and UC Surface mixer-control software for Mac, Windows, and iPad®. QMix®-UC touch wireless aux-control software for iPhone®, iPod® touch, and Android™ are also available free.
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Software
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Power without compromise
The StudioLive 16.0.2 USB mixer provides plenty of DSP power, with no limitations, no shared resources, no figuring out what processing is available where. You have all of the processing available at all times, with no compromises or caveats.
The Fat Channel
The unique Fat Channel provides a compressor, limiter, expander, and three-band semi-parametric EQ on every channel and bus; plus a library of professionally crafted presets with room for more. You also get a stereo, 31-band graphic EQ for the main bus, and two 32-bit delay/reverb effects processors, each with its own dedicated mix bus.
One-click recording
The StudioLive 16.0.2 USB is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!
Studio One Pro 7 DAW Software License Included.
Your hardware registration includes a Studio One Pro 7 perpetual license (yours to keep) and 12 months of access to all the add-ons, exclusive content, and extras in Studio One Pro+.
Specs
Electronics
Phantom Power
+48 VDC (± 2 VDC)
Power Requirements
100W (continuous)
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Gray
Product Name
PreSonus® StudioLive® Classic 16.0.2 USB Digital Console Mixer, Gray
Series
StudioLive®
入力
Line Input Connection Type
1/4" TRS, Balanced
Line Inputs Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Line Inputs Gain Range
-20 dB to +20 dB (± 1 dB)
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+22 dBu (Unity Gain)
Line Inputs Signal To Noise Ratio
94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Line Inputs Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Equivalent Input Noise
+125 dB Unweighted, +130 dB A-Weighted
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Input Impedance
1 kΩ (Balanced)
Microphone Preamp Maximum Input Level
+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
-95 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
0.005%, +4 dBu, 20 Hz-20 kHz, Unity Gain, Unweighted (1 kHz at Unity Gain)
Measurements
Product Depth
15.56" (397 mm)
Product Height
5.5" (140 mm)
Product Width
16" (406 mm)
その他
Digital Audio Internal Processing
32-Bit, Floating Point
Power Cable
IEC
Supported Sample Rates
48 kHz, 44.1 kHz
アウトプット
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
+18 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
+24 dBu
XLR Outputs Output Impedance
100 Ohms
パフォーマンス
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
+18 dBu
