Our USB condenser microphone with StudioLive processing inside.
Couldn't load pickup availability
Overview
So much more than a microphone

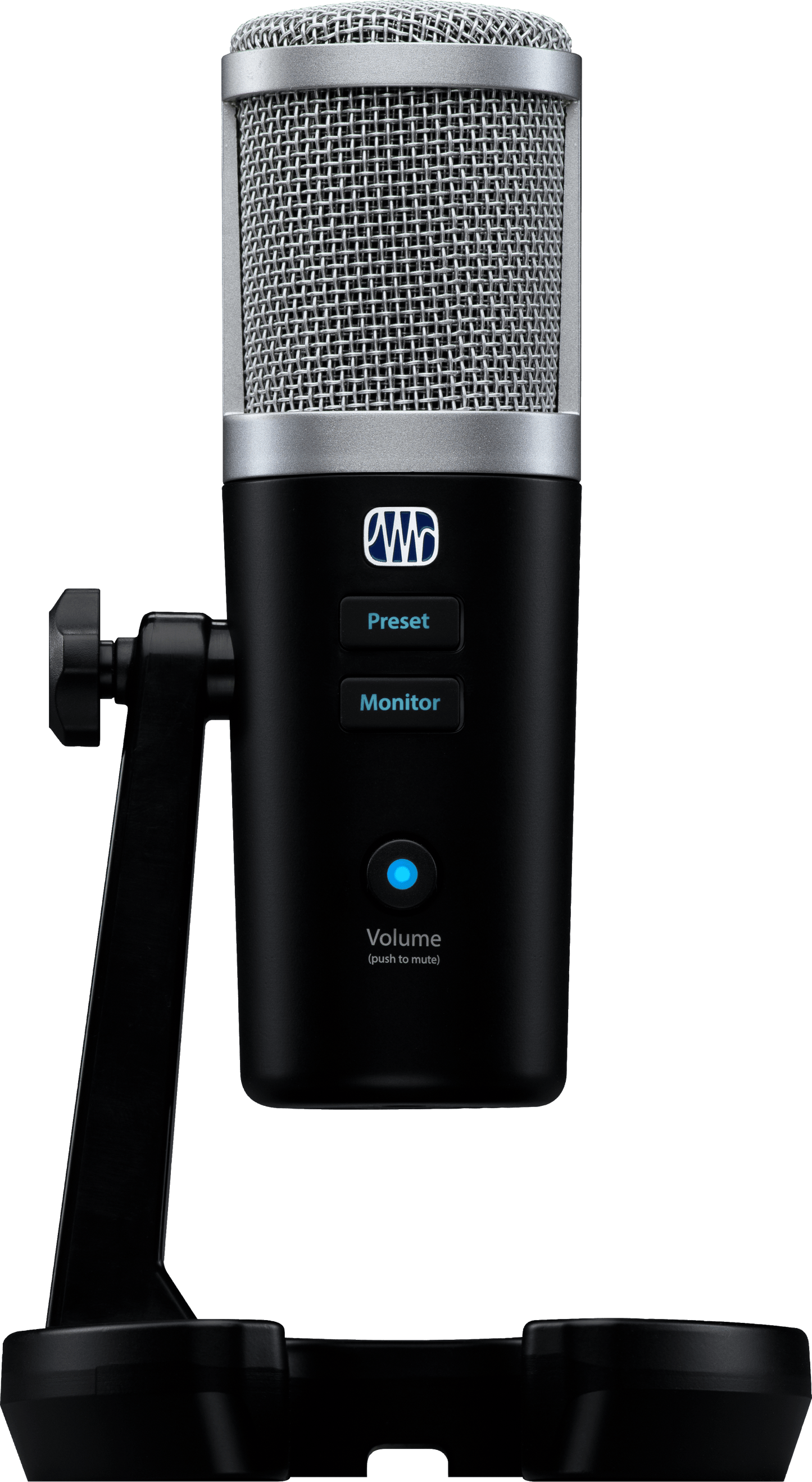

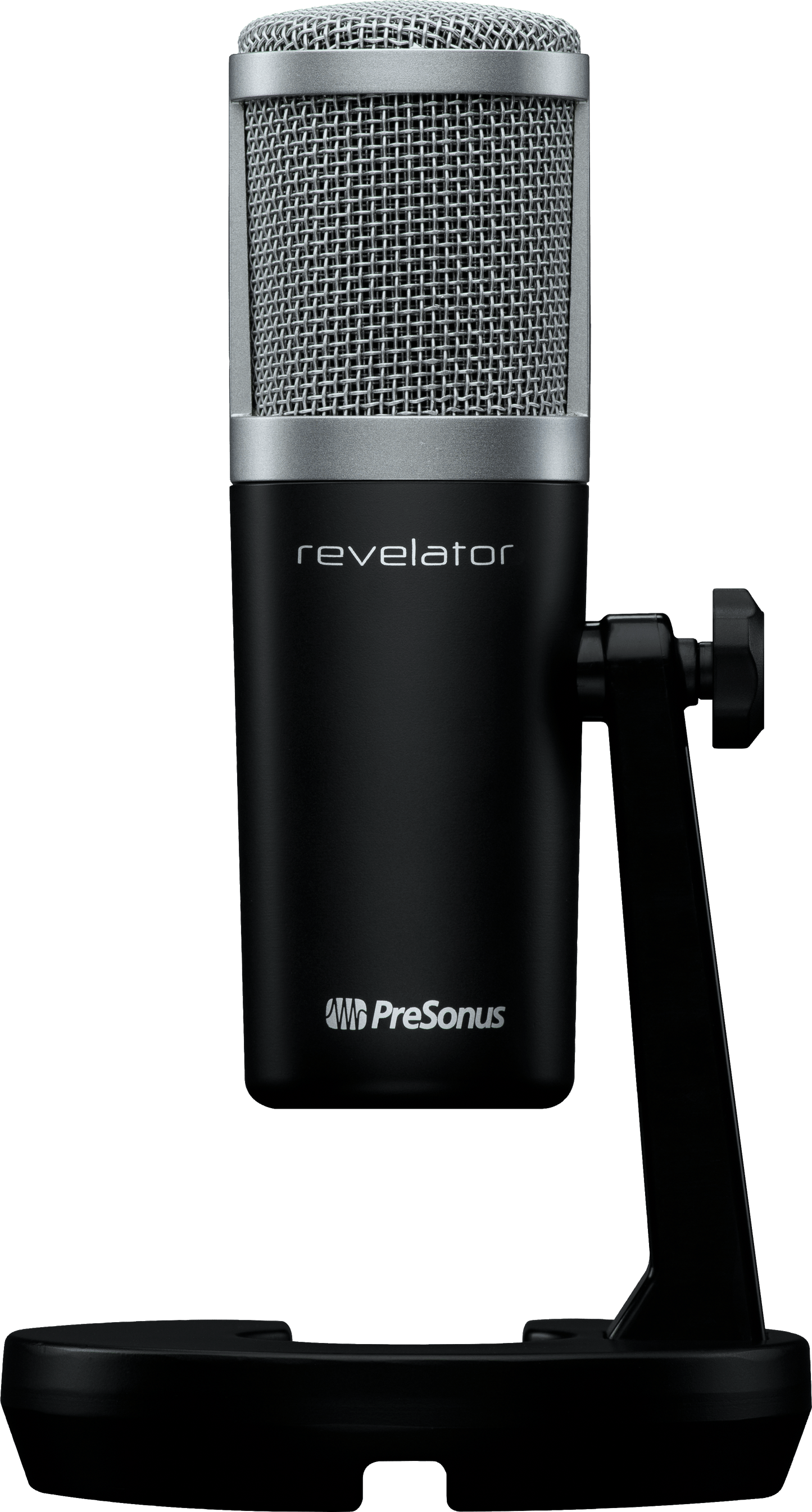

The Revelator is a USB condenser mic ideal for recording both guitar and vocals with all the tools you need to get the perfect take, whether you're recording your latest song idea or streaming live on social media.
Revelator is:
- A 3-pattern large-diaphragm condenser microphone
- An audio interface
- A mixer
- An effects processor
- A headphone amp
All in one sleek, stylish microphone.
Round out the package with Fender Studio Pro - 6 Month Trial and you've got a complete home recording studio built into a mic that's ideal for guitar and vocals.
The custom-designed condenser capsule is perfect for capturing every detail and nuance of acoustic guitar and vocal performances. Three selectable pickup patterns provide flexible options for recording solo or with friends. And no separate audio interface purchase is required. Just connect Revelator to your Mac, Windows, Chromebook, or iOS/iPadOS device and start recording straight away.
Revelator's onboard effects let you polish and sculpt your sound with meticulous State-Space modeled emulations of world-class studio hardware. Dial in just the right amount of compression for your chicken-pickin' licks, sweeten your vocals with a dose of tastefully-applied reverb, or boost the fullness of your dreadnought with a bit of bottom-end EQ. Once you've honed your tone, save it as a Preset for later use. You can even trade Presets with other Revelator users.
And when you're ready to stream your performance, Revelator's built-in mixer lets you blend the audio from different applications simultaneously. This means you can mix in backing tracks with your guitar and vocal performance - and then send the mix to your streaming software of choice, while recording the entire show.
Overview
Features
- Professional USB-C®-compatible condenser microphone: Ideal for vocals and acoustic instrument recording, live streaming, and more
- Professional sound made easy: Professionally crafted Presets make you and your guitar sound pro with a single click. Create your own custom presets to share, save, or produce on the go.
- Selectable pickup patterns:
- Cardioid for single-source applications
- Omnidirectional to pick up the entire room
- Figure-8, perfect for duos and collaboration
- Customizable mixes: Integrated mixer with two dedicated loopback audio channels to add backing tracks. Perform live online with backing tracks while recording the entire show!
- Onboard processing: Effects processing lets you polish your sound with reverb, compression, EQ, and fantastic Voice FX - all built into Revelator, and remotely-controllable from your compatible mobile device
- Recording Software included: Complete recording solution featuring 6 months of Fender Studio Pro including music tutorials, tons of sound samples and virtual instruments
- Built-in headphone amplifier: Zero-latency monitoring lets you listen in real-time
- Bus-Powered: Revelator is powered by your connected USB-C device so no need for an additional power supply. It works great with both Apple and Android devices.
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
- Universal Control v5.1.0.112930 (Android)
- Universal Control v5.1.0.112930 Download (Mac)
- Universal Control v5.1.0.112930 Download (Windows)
- Universal Control v5.0.1.111903 Download (Mac)
- Universal Control v5.0.1.111903 Download (Windows)
- Universal Control v5.0.1.111903 (Android)
- Universal Control v5.0.0.110112 Download (Windows)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Fender Studio Pro - 6 Month Trial
Your hardware registration includes a Fender Studio Pro 6 Month Trial — a great way to start recording and a powerful entryway into the Fender Studio universe. Users can upgrade to Fender Studio Pro when they're ready to take their game to the next level. Compatible with virtually all macOS, and Windows.
Analog classics under the hood.
Revelator is the first USB microphone to provide State Space-modeled analog processing onboard with the same Fat Channel gate, compressor, and EQ our StudioLive Series III mixers offer. Like what you hear? All processing can be printed to your recording, or just used for your monitor mix, you decide.
Ready to go live when you are.
Revelator’s presets are stored on the mic, so you can take your sound with you. Connect directly to your iPad Pro, or grab your Camera Connection Kit and connect your Revelator to your Lightning- or USB-C-equipped iPhone or iPad. Only Revelator brings studio-quality sound to Facebook Live, IGTV, or anywhere else you stream from your mobile device.
Specs
Footswitch
NA
Connectivity
USB-C® Compatible USB 2.0 Connection (Bus-Powered)
Effects
PreSonus Fat Channel: High Pass Filter, Noise Gate, 3 Compressor models, 3 EQ models and Limiter. Voice Effects: Comb Filter, Delay, Doubler, Ring Modulator, Vocoder and Reverb
Headphone Jack
1/8" TRS Active Stereo
Color
Black
Product Name
Revelator Microphone, Black
Series
Revelator™
Audio Controls
Direct Monitor, Mic Gain, Headphone Level, Mute, Preset Select
Microphone Types
Mono Condenser
Product Depth
5.13" (13.03 cm)
Product Height
8.94" (22.7 cm)
Product Height/Length
8.94" (22.7 cm)
Product Weight
1.6 lbs. (0.73 kg)
Product Width
5.13" (13.03 cm)
Power Cable
USB 2.0 Bus-Powered
Supported Sample Rates
44.1, 48, 88.2, and 96 kHz (Note: 44.1 and 48 kHz only on macOS while in Multi Mode)
Headphone Outputs Dynamic Range
77.5 dB
Headphone Outputs Frequency Response
20 Hz to 20 kHz
Headphone Outputs Impedance Working Range
16Ω
Headphone Outputs Maximum Output
22.6 mW (16Ω)
Headphone Outputs Total Harmonic Distortion
0.01%
Digital Audio Bit Depth
24-bit
Maximum SPL
110 dB <3% THD
Microphone Frequency Response
20 Hz to 20 kHz
Microphone Sensitivity
1 mV/Pa
Polar Patern
Cardioid, Bidirectional (Figure 8), Omnidirectional
