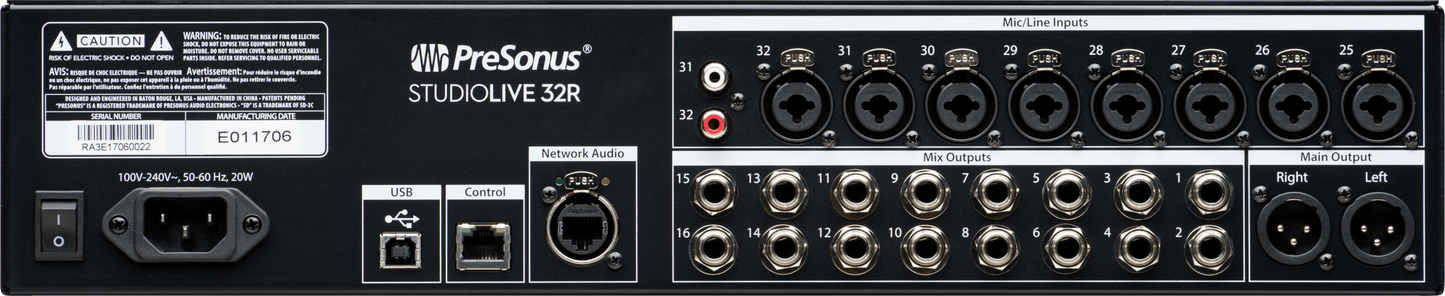

StudioLive® Series III 32R Digital Rack Mixer
StudioLive® Series III 32R Digital Rack Mixer
SKU:
2779200203
Regular price
¥268,300
Regular price
¥268,300
¥268,300
Sale price
Unit price
per
Our 34-input, 40-channel Series III stage box and rack mixer is four audio tools in two compact rackspaces.
Couldn't load pickup availability
Overview
34-input, 40-channel rack mixer with stagebox and monitor mixer modes.
The StudioLive® 32R is a 40-channel digital mixer in two rackspaces. Use it standalone with Universal Control software, pair it with StudioLive Series III consoles as a stage box or monitor mixer, or connect with EarMix 16M personal mixers. Plug into your studio computer for a bidirectional 128-channel (64x64) USB audio interface with vintage-modeled dynamics and EQ plug-ins on every input and bus.
Set up 16 FlexMixes as auxes, subgroups, or matrix mixes. Four effects buses add reverb and delay without affecting monitors; four subgroups simplify processing; 24 DCAs keep group control fast and flexible.
Powered by the PreSonus® FLEX DSP Engine, it offers 40 mixing channels, 22 mix buses, 270 processors, and Fat Channel plug-ins on all channels and buses. Control mixes via wireless router on iPad®, Android™, or Windows® Touch with Universal Control.
The 64x64 USB interface enables effortless multitrack recording and instant playback with one button—no routing needed.
A free firmware update adds Milan certification, an improved limiter with variable release, and expanded Digital Reverb XL controls with new presets—offering enhanced power and precision. With this firmware update, you also get the 7 additional State Space Models EQs (10 total) and 8 analog-inspired compressors (11 total) from the Fat Channel Collection installed standard, adding even more processing to create studio-quality mixers for your live session.
Overview
Features
- Dual-core FLEX DSP Engine powers 286 processors—the most in its class
- 40-input rack mixer with 32 XMAX mic/line inputs + FLEX FX returns
- 26 mix buses: 16 FlexMixes (aux, subgroup, matrix), 4 FX buses, stereo main
- Fat Channel EQ & compressors on every channel and bus
- 4 FLEX FX slots with classic reverb & delay
- 24 DCAs for fast group control
- 128-channel USB recording + onboard SD recorder with Virtual Soundcheck
- AVB networking for seamless StudioLive, NSB, EarMix integration
- Remote control via Universal Control & QMix-UC apps
- Includes Capture Multitracking and Fender Studio Pro license for pro recording
- Optional Dante available with AVB-D16
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Software
- StudioLive® Series III 32R Digital Rack Mixer Firmware v3.3.0.109659
- Universal Control v5.0 Download (Windows)
- Universal Control v5.0 Download (Mac)
- Universal Control v5.0 (Android)
- Universal Control v4.7.2.108537 Download (Mac)
- Universal Control v4.7.2.108537 Download (Windows)
- Universal Control v4.7.2.108537 (Android)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
The perfect personal monitoring system.
When combined with up to 16 EarMix 16M personal monitor mixers, the StudioLive 32R is the most powerful personal monitoring hub available. With 16 FlexMix buses that can be configured as aux mixes, subgroups, or matrix mixes, the StudioLive 32R makes it easy to create simplified mixes for musicians on stage. No other personal monitoring system offers so much power and flexibility.
The digital stage box.
As a digital stage box, the StudioLive 32R provides 24 remote digitally controlled XMAX preamps that can be gain-staged right from your StudioLive Series III console Fat Channel. The outputs of the StudioLive 32R automatically mirror the mixes available on your console mixer, making routing fast and easy.
One-click recording
The StudioLive 32R is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Fender Studio Pro!
Fender Studio Pro DAW Software License Included.
Your hardware registration includes a perpetual License to Fender Studio Pro.
Specs
Electronics
Headphone Jack
1/4" Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
100-120V
VoltageRequirements
100-230 VAC, 50-60 Hz
General
Color
Black
Product Name
StudioLive® Series III 32R Digital Rack Mixer, Black
Series
StudioLive®
Hardware
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Inputs
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Measurements
Product Depth
12" (305mm)
Product Height
3.5” (90 mm)
Product Height/Length
3.5” (90 mm)
Product Weight
11.2 lbs. (5 kg)
Product Width
19" (483mm)
Refinement Weight
25-under
Miscellaneous
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Supported Sample Rates
48 kHz, 44.1 kHz
Output
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Performance
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
