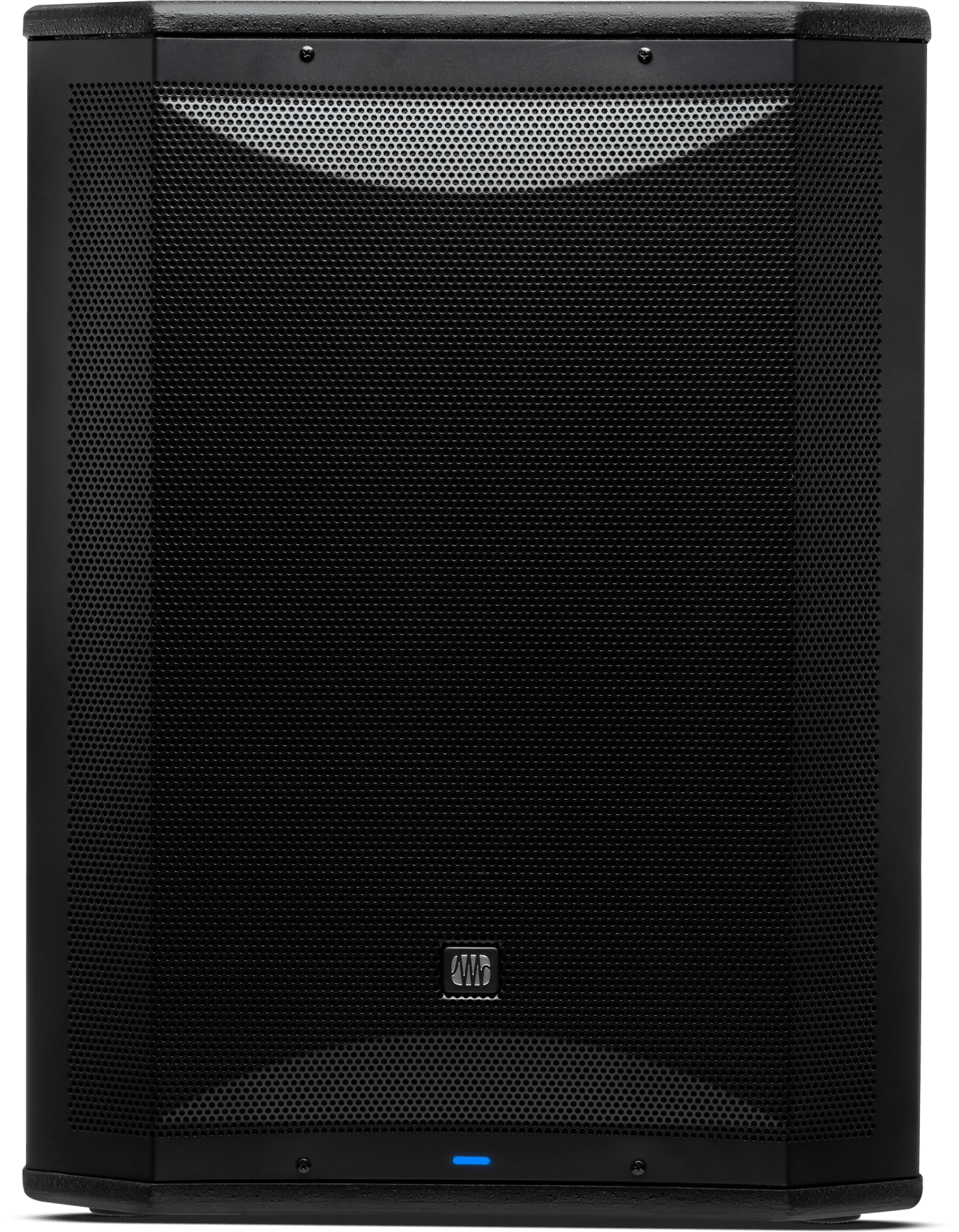

AIR XD Sub 18 1 x 18” Active Extended Definition Subwoofer
AIR XD Sub 18 1 x 18” Active Extended Definition Subwoofer
受取状況を読み込めませんでした
- The PreSonus AIR XD Sub 18 is a high-performance active subwoofer designed for professional use, delivering massive low-end extension and high SPL for large-scale events and installations. Its custom 18-inch low-frequency driver with enlarged voice coil provides efficient power handling and deep, punchy bass with minimal distortion, while advanced tuning options—including variable lowpass filtering, alignment delay, and cardioid/end-fire array presets—ensure precise control of low-frequency performance in any environment.
- Powered by 2,000W of efficient Class D amplification, the AIR XD Sub 18 delivers clean, consistent output with exceptional headroom for demanding live sound applications. A full-color 2.6” LCD provides intuitive metering, system control, and fast access to DSP presets, EQ, and tuning modes.
- Built-in Bluetooth with TWS Bridge Mode enables wireless stereo pairing with AIR XD full-range speakers, while flexible routing and direct outputs allow seamless integration into FOH or monitoring setups. Rugged wood enclosures with ergonomic handles, ground-stacking provisions, and built-in caster mounting make the AIR XD Sub 18 as portable as it is powerful, whether stacked, flown, or installed permanently.
Overview
特長
- Custom 18-inch low-frequency driver with enlarged voice coil for extended low-end depth and maximum impact
- 2,000W Class D amplifier delivers clean, powerful bass for demanding applications
- Frequency Response: 47 Hz to 103 Hz (-3 dB), 33 Hz to 131 Hz (-10 dB)
- 130 dB SPL (max)
- Advanced DSP with variable lowpass filter, alignment delay, and cardioid/end-fire array presets
- Integrated “Mo’ Bass” enhancement for added low-frequency punch
- Full-color 2.6” LCD for metering, DSP control, and tuning options
- Built-in Bluetooth with TWS Bridge Mode for wireless stereo pairing with AIR XD full-range models
- Dual combo inputs with direct outputs for flexible routing and system integration
- Rugged wood enclosure with ergonomic handles, ground-stacking provisions, and built-in caster mounting for portability
ダウンロード
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
スペック
アクセサリー
Included Accessories
Casters
Electronics
Bluetooth
Bluetooth® V5.0
Channels
Two
Connectivity
Bluetooth
Inputs
Three - 2 x XLR/TRS Line Combo, Bluetooth
Line Out
Two - 2 x XLR Link Out
Power Consumption
5.6A (230V-50 Hz), 11.1A (120V)
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Amplifier Type
Class-D
Color
Black
Product Name
AIR XD 18S Active Sound-Reinforcement Subwoofer
Series
AIR
Hardware
Audio Controls
Gain, Volume, Hi/Lo EQ, X-over
Cabinet Material
15mm Plywood
Cooling
Passive radiator
Grille Material
1.5 mm Steel
Handle
2 Side
LF Transducers
18” (3” Voice Coil)
Pole Socket
Ground-Stack Provisions
入力
Line Input Connection Type
XLR/TRS Mic/Line Combo
Line Inputs Impedance
14K ohm
Line Inputs Maximum Level
+25dBu
Measurements
Product Depth
25.8" (65.6 cm)
Product Height
26" (66.0 cm)
Product Height/Length
26" (66.0 cm)
Product Weight
88.4 lbs. (39.8 kg)
Product Width
19.3" (49.0 cm)
その他
DSP Features
Low-pass EQ, crossover, delay, polarity and “Mo’Bass” mode
Power Cable
IEC
Protections
Output limiter
アウトプット
Line Outputs Connection Type
XLR Male, Balanced
パフォーマンス
Peak SPL
130 dB
Total Power Output
2000 Watts
スピーカー
Crossover Frequency
60 Hz - 150 Hz
Speaker Type
Active Vented Design
Total Impedance
NA
