AudioBox 22VSL

AudioBox 22VSL

モデル番号: AUDIOBOX22VSL
詳細を表示する

AudioBox 22VSL

      The portable, affordable, and versatile recording solution

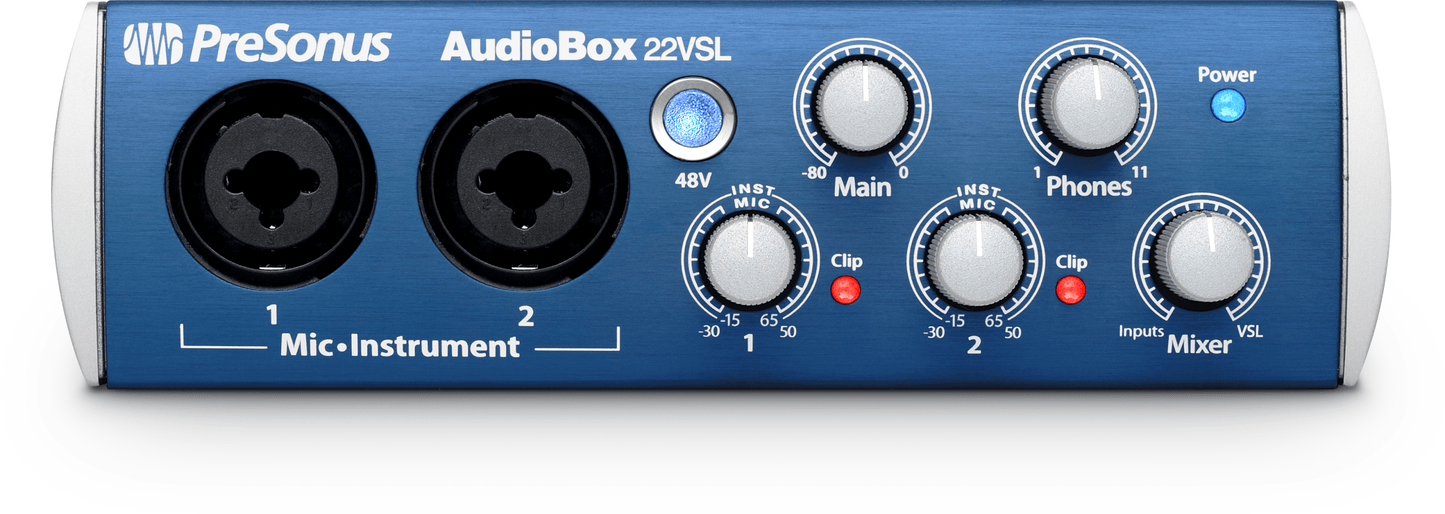

      The AudioBox 22VSL’s two front-panel combo mic/instrument inputs make it a great choice for a singer/songwriter or for a couple of guitarists who want to collaborate or jam. A mix control blends the input signal with the computer playback stream for zero-latency monitoring so you can overdub new tracks without hearing annoying delays. With its MIDI I/O, you can connect the AudioBox 22VSL to keyboards, sound modules, and control surfaces. These features make the AudioBox 22VSL a simple, affordable, mobile solution for podcasting, recording sermons, and teaching music, too!

      Overview

      特長

      • Combo XLR mic and balanced ¼" instrument input
      • Class A XMAX mic / instrument preamp
      • Individual channel-trim controls with 0 to +35 dBu mic gain range

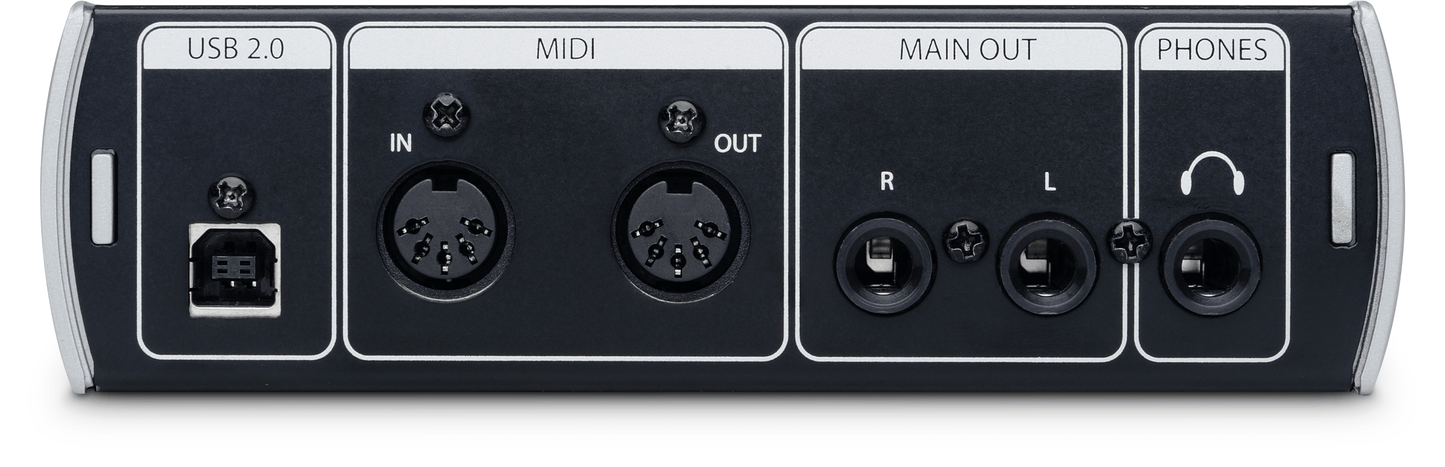

      • 2 balanced ¼” main (L/R) line outputs
      • 1 stereo ¼” headphone output with level control
      • MIDI In/Out
      • 1 USB 2.0 port
      • 48V phantom power for condenser microphones (global)
      • Mixer control (blends the input signal with the computer playback stream for zero-latency monitoring)
      • Main-output level control
      • Power/USB sync LED
      • LED clip indicator for each channel
      • Mix, adjust input and playback-returns levels, and add effects and signal processing from your laptop or other computer
      • 24-bit resolution and 44.1, 48, 88.2, and 96 kHz sampling rate
      • Professional-grade A/D/A converters (+114 dBu dynamic range)
      • Zero-latency analog monitoring with playback/input Mix control knob
      • Mac®- and Windows®-compatible, including Mac OS X 10.7 Lion and Windows 7
      • Supports ASIO, Core Audio, Direct Sound (Windows XP), Windows Audio Session API (Windows Vista and Windows 7)
      • 1/3U rack-mountable (screw-mount to standard rack tray, not included)
      • Road-rugged construction with all-metal chassis and metal knobs
      • Weighs just 1.6 lb. (0.7 kg)
      • Powered via USB bus—no wall wart!
      • Studio One® Artist license included, PreSonus’ revolutionary digital audio workstation for Mac and Windows, with unlimited track count and 2 GB content

      ダウンロード

      Documentation

    • Reference Manual - Universal Control Software For StudioLive Mixers - English
    • AudioBox VSL Series 2014 Brochure
    • Owner's Manual - English
    • Quick Start Guide - English
    • 2-Year Limited Non-Transferable Warranty (Multilingual)

      • Software

    • Universal Control v4.6.1.104762 (Mac)
    • Universal Control v4.6.1.104762 (Windows)
    • Universal Control v4.6.0.103899 (Mac)
    • Universal Control v4.6.0.103899 (Windows)
    • Universal Control v4.5.0.102825 (Mac)
    • Universal Control v4.5.0.102825 (Windows)
    • Universal Control v4.3.3.100963 (Windows)
    • Need an older version? Click here
