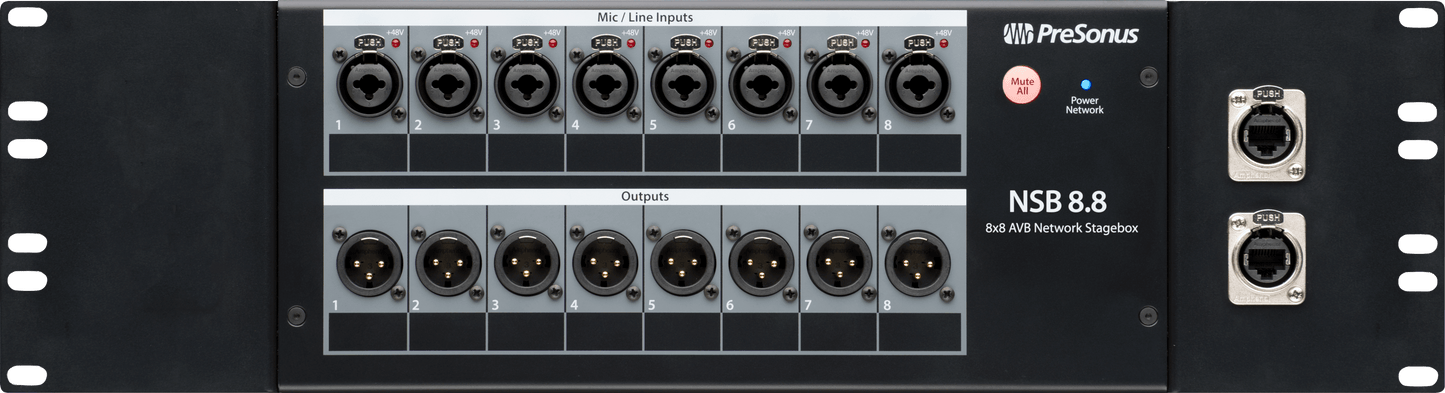

NSB 8.8 Networked Stage Box
NSB 8.8 Networked Stage Box
SKU: 2779300202
通常価格
¥111,200
通常価格
¥111,200
セール価格
¥111,200
単価
あたり
Our rugged, rack-mountable 8x8 network stage box with 8 locking XMAX mic/line inputs and 8 locking XLR outputs.
詳細を表示する
NSB 8.8 Networked Stage Box
通常価格
¥111,200
通常価格
¥111,200
セール価格
¥111,200
単価
あたり
Overview
PreSonus® StudioLive® Series IIIミキサーとシームレスに動作するように設計されたPreSonus NSB 8.8ステージボックスは、8系統のロック式コンボマイク／ライン入力と、リモートコントロール可能なXMAXプリアンプを搭載しています。すべての入力は、StudioLive Series IIIコンソールや無償のPreSonus Universal Controlソフトウェアから制御可能。8系統の出力はすべてロック式XLRジャックを採用し、内蔵の2ポートAVBスイッチは、複数のユニットをデイジーチェーン接続することが可能です。NSB 8.8は、頑丈なスチール製シャーシと頑丈なハンドル、ステージ・ボックス・フォーム・ファクターにより、ステージ上に設置しやすく、過酷なツアーにも耐えることができます。オプションのラックイヤーキットを使用すればラックマウントも可能です。
Overview
Features
- Rugged stage box enclosure with handles
- 8 locking, mic/line inputs and 8 locking XLR outputs
- 8 remote-controllable XMAX preamps
- Gain compensation for shared inputs
- 2 AVB ports with locking XLR Ethernet jacks
- 16x8 AVB (8 direct input channels + 8 gain compensated input channels)
- Easy setup and control from Series III mixers and free PreSonus Universal Control software
- Optional Rackmount Kit available
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Software
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Gain compensation on every input.
The NSB 8.8 can provide inputs for any StudioLive Series III digital mixer on an AVB network. NSB-series stage boxes have onboard DSP that provides gain compensation on every input so every mixer on the network can make gain adjustments relative to the level set on the master mixer. In this way, every mixer can adjust the preamp level locally for optimal gain staging.
A complete networked solution.
StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The NSB 8.8 can be used alone or with many other NSB-series stage boxes to add remote audio to one StudioLive Series III digital mixer or multiple mixers on the same network.
Specs
Electronics
Phantom Power
+48 VDC (±2 VDC)
Voltage
100-120V
General
Color
Black
Product Name
NSB 8.8 Networked Stage Box, Black
Series
NSB
Hardware
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
入力
Line Input Connection Type
1/4" TRS, Balanced
Line Inputs Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+18 dBu
Line Inputs Signal To Noise Ratio
94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Line Inputs Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Microphone Input Connection Type
XLR Female, Balanced
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Measurements
Product Depth
4.5" (11.43 cm)
Product Height
5.2" (13.2 cm)
Product Width
16.7” (42.4 cm)
その他
Power Cable
IEC
Supported Sample Rates
48 kHz, 44.1 kHz
アウトプット
XLR Outputs Maximum Output Level
+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
パフォーマンス
Digital Audio Dynamic Range
115 dB (A-Weighted, 48 kHz)
