Quantum 2626
Quantum 2626
SKU: 2777600102
通常価格
¥109,900
通常価格
¥109,900
セール価格
¥109,900
単価
あたり
Our extremely low-latency 26x26, 24-bit / 192 kHz, Thunderbolt 3 recording audio interface.
詳細を表示する
Quantum 2626
通常価格
¥109,900
通常価格
¥109,900
セール価格
¥109,900
単価
あたり
Overview
ある雑誌で「地球上で最速のオーディオインターフェイス 」と評されたQuantum 2626は、Thunderbolt 3バスとPreSonus®独自のドライバを使用し、あらゆるオーディオインターフェイスの中で最も低いラウンドトリップレイテンシー（1ms未満）を実現します。これで、DAWを離れることなく、お気に入りのプラグインを通して最大192kHz、24ビットの忠実度でレコーディングとモニターができます。
Quantum2626は、最大26のオーディオ入力と26の出力を備え、PreSonusのXMAXクラスAアナログマイクプリアンプを8つ搭載しています。すべてのアナログ入出力に搭載された高品質コンバーターは、優れた低ジッタークロッキングで115dBのダイナミックレンジを提供し、複雑な音楽の倍音を、聴感上の歪みなく、スムーズかつ自然に捉えます。その結果、現役のプロフェッショナルが求める最高のオーディオ・クオリティを実現しています。また、MIDI I/OとBNCワードクロックI/Oを装備し、他のデジタル・オーディオ・デバイスとの同期を確実にします。このインターフェイスは、1Uラックマウント可能で、頑丈な金属製シャーシと金属製ノブでしっかりと保護されています。
12ヶ月のStudio One Pro+とStudio Magic Software Suiteが付属するQuantum 2626は、完全なレコーディング・ソリューションです。また、このインターフェースは、macOSまたはWindows用のほぼすべてのレコーディングソフトウェアと互換性があります。無料のPreSonus UC Surfaceコントロール・ソフトウェアは、完全なメータリングと統合されたリアルタイム・アナライザー（RTA）へのアクセスを提供します。
Overview
Features
- 26x26 Thunderbolt 3 ultra-low-latency (as low as <1 ms roundtrip)
- 24-bit/192 kHz operation with high-quality 115 dB A/D/A converters
- Simultaneous I/O up to 26 inputs / 26 outputs (at 44.1 or 48 kHz)

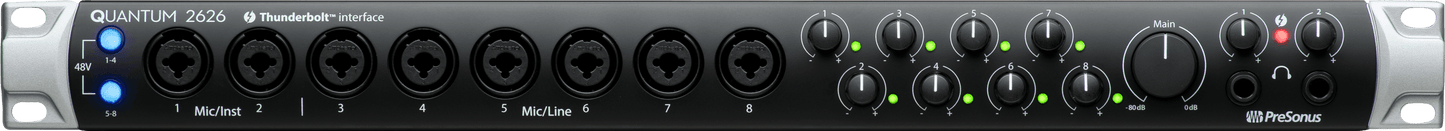

- 2 mic/instrument inputs with preamp direct outputs with returns and 6 balanced mic/line inputs, all with PreSonus's famed XMAX preamps
- 2 balanced stereo main outputs with independent level control; 8 DC-coupled, balanced line outputs; and dual headphone outputs with independent level control
- ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
- Stereo S/PDIF coaxial input and output
- MIDI I/O and BNC word clock I/O with low-jitter clocking
- 12-months of Studio One Pro+ and Studio Magic Software Suite included
- 1U rack-mountable, with all-metal chassis and metal knobs
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Resources
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Studio One Pro 7 DAW Software Access Included.
Your hardware registration includes a 6-month stackable membership to Studio One Pro+ featuring unlimited access to the latest version of Studio One Pro and all the extras.
About XMAX preamps.
PreSonus®’ famed XMAX Class A preamps have no crossover distortion and deliver pure, clear, musical results. They run on high-voltage power rails to deliver more headroom, deeper lows, smoother highs and a richer overall sound. We only use discrete components for accuracy and transparency — not op-amps that can add noise, coloration and harshness.

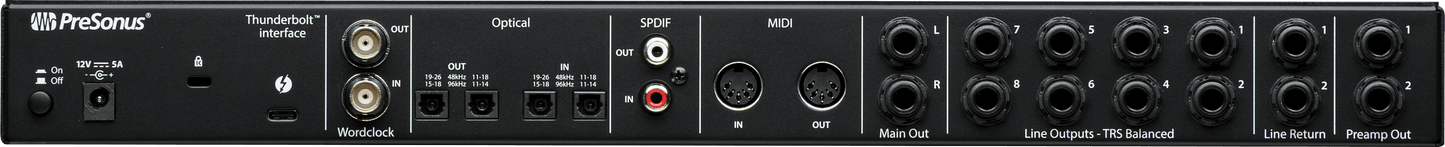

All the connectivity you need.
The Quantum 2626 provides two combo mic/instrument inputs (with direct outs and returns for patching outboard gear) and six balanced mic/line inputs. Another 18 inputs and outputs are available via ADAT/dual SMUX and S/PDIF. Eight ¼-inch TRS outputs are DC-coupled for sending control voltages, plus two Main outs, two headphone outs, and MIDI I/O.
Specs
Electronics
Connectivity
Thunderbolt
Headphone Jack
1/4” TRS Female, Stereo, Unbalanced
Phantom Power
+48 VDC
Signal Level Led
Clip: -0.5 dBFS Signal: -50 dBFS
Voltage
120V
General
Color
Black
Product Name
Quantum 2626, Black, 120V
Series
Quantum
Hardware
ADAT Optical IO
Toslink™ Connectors, ADAT/SMUX Formats
SPDIF IO
RCA 75Ω Coax
Word Clock IO
BNC Connector, 4.5 Vpp @ 75Ω Load
入力
Instrument Inputs Dynamic Range
> 106 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response
20 Hz to 20 kHz (±0.2 dB, Unity Gain, 48 kHz)
Instrument Inputs Gain Range
60 dB
Instrument Inputs Maximum Level
+15 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range
> 118 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response
20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz)
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+ 18 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion
< 0.005% (1 kHz, Minimum Gain)
Microphone Input Connection Type
XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range
> 110 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise
< -131 dBu (Maximum Gain, 40Ω, 22 kHz BW, A-Weighted)
Microphone Preamp Frequency Response
20 Hz to 20 kHz (±0.15 dB, Unity Gain, 48 kHz)
Microphone Preamp Gain Control Range
60 dB
Microphone Preamp Input Impedance
1.6 kΩ
Microphone Preamp Maximum Input Level
+10 dBu (Balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion
< 0.005% (1 kHz, Minimum Gain)
Measurements
Product Depth
7" (17.8 cm)
Product Height
1.75" (44.45 mm)
Product Width
19" (483mm)
その他
Power Cable
12 VDC, External Power Supply
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
アウトプット
Headphone Outputs Dynamic Range
> 110 dB (A-Weighted)
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Impedance Working Range
16Ω to 300Ω
Headphone Outputs Maximum Output
175 mW/Channel (56Ω Load)
Headphone Outputs Total Harmonic Distortion
< 0.03% (1 kHz)
Line Outputs Connection Type
1/4" TRS Female
Main And Line Outputs Dynamic Range
> 118 dB (A-Weighted)
Main And Line Outputs Frequency Response
20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz)
Main And Line Outputs Maximum Level
+18 dBu (Balanced)
Main And Line Outputs Output Impedance
51Ω
Main And Line Outputs Total Harmonic Distortion
< 0.0035% (1 kHz, +4 dBu)
Main Outputs Connection Type
1/4" TRS Female
パフォーマンス
Crosstalk (Input to Input)
< -110 dB
Crosstalk (Output to Output)
< -115 dB
Digital Audio Bit Depth
24 Bits
Digital Audio Dynamic Range
115 dB (A-Weighted)
