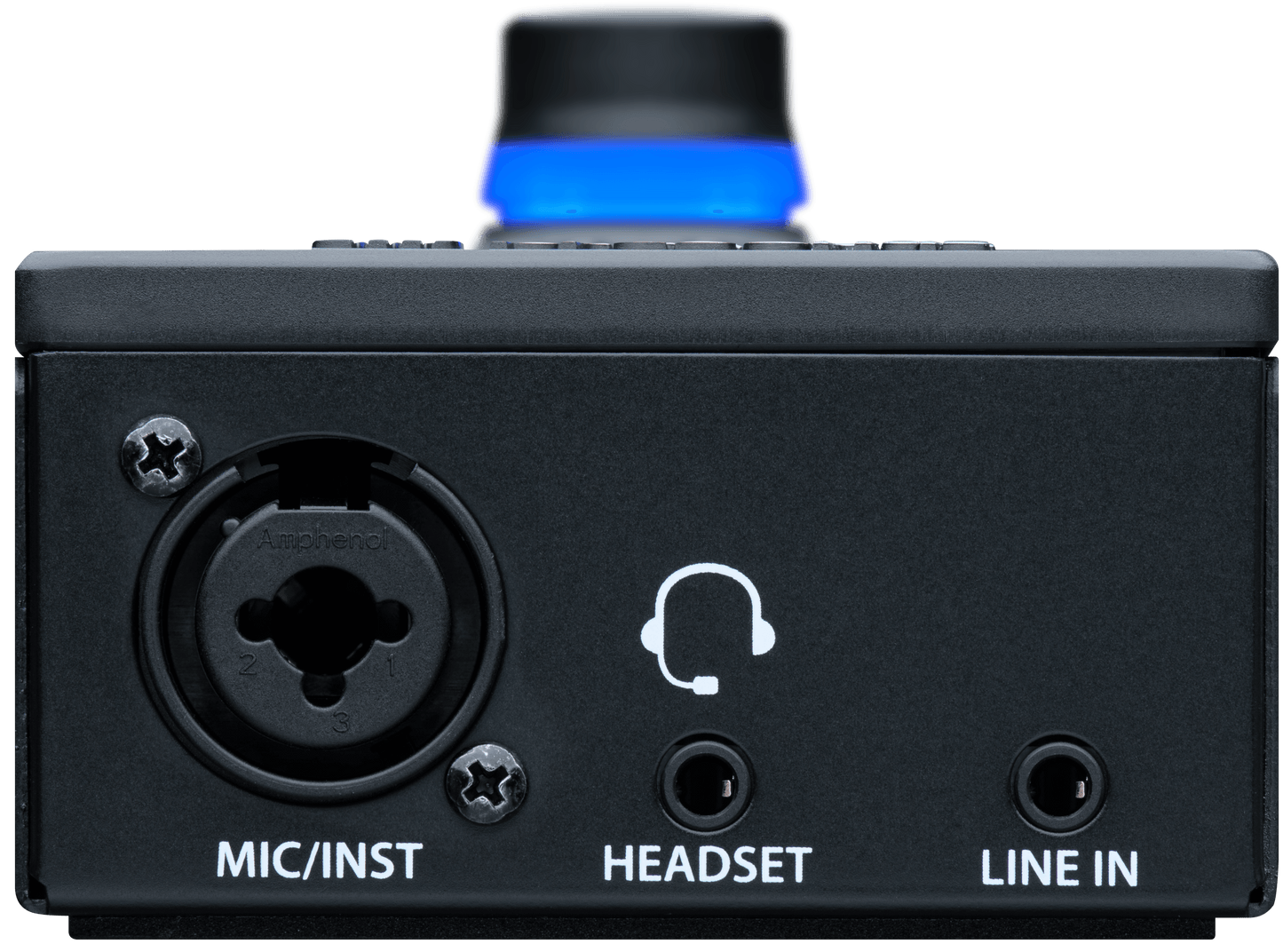

Revelator io44

Revelator io44

SKU: 2777700303
¥28,000
¥28,000 ¥28,000
セール 売り切れ

Our 1x1, 24-bit / 96 kHz, USB-C compatible audio interface with built-in streaming mixer, onboard audio effects and professional mic preamp.
詳細を表示する

Revelator io44

¥28,000
¥28,000 ¥28,000
セール 売り切れ

      Overview

      Revelator io44があれば、どこでもハイエンド・レコーディング・スタジオが作れます。プロ仕様のXLRマイク、ギター、DJミキサー、ゲーム用ヘッドセットなど、Revelator io44にはレコーディングに必要な入出力がすべて含まれています。すべてのアナログ入力でプロセッシングが可能なため、パフォーマンスやレコーディングでスムーズで洗練されたサウンドを実現できます。

      ギタリスト、シンガー、DJ、その他誰でも、レコードのトラッキングやオンライン・ライブに関係なく、素晴らしいサウンドを奏でることができます。

      Revelator io44には、25年以上にわたるレコーディング・スタジオのノウハウが詰め込まれています。XLRマイクは、PreSonusのXMAX-Lマイク・プリアンプにより最高のサウンドを実現します。プロフェッショナルなマイクに十分なゲインを与え、あなたの声をスムーズかつ自然に、歪みなく収音します。ヴォーカルのレコーディングでも、ライブストリーム中のフォロワーとのチャットでも、あなたの声ははっきりとクリアに聞こえます。

      Revelator io44は、最大3つの異なるアプリケーションのオーディオを同時にブレンドできる使いやすいミキサーを搭載しています。コンピュータに負担をかけることなく、バッキングトラック、ゲームプレイさえも素早く簡単に追加することができます。また自動出力リミッターが、ストリームが歪むのを防ぎます。macOSでもWindowsでも、入力とアプリケーションのカスタム・ミックスを作成し、ほぼゼロのレイテンシーですべてをモニターできるので、ストリーミングとレコーディングを同時に行うことが可能です。

      Overview

      Features

      • Ultra-compact, mobile bus-powered USB-C® compatible audio interface for recording, streaming, podcasting and more
      • 96 kHz / 24-bit operation for pristine audio recording
      • 1 digitally controlled, high-headroom, low noise XMAX-L mic preamp for professional results
      • 1 Instrument input (via combo) for guitars and basses
      • 1 TRS ⅛" Stereo Line input for DJ mixers and more
      • Stand-alone functionality lets you take your sound with you
      • ​Balanced Main Left / Right with independent level control and mute
      • 1 TRRS 1/8" stereo Headset connection (mic in, stereo out)
      • Integrated mixer lets you blend audio from up to three applications at once
      • Powerful onboard StudioLive processing lets you polish your sound (or completely transform it) with reverb, compression, EQ, and fantastic Voice FX - all without taxing your CPU
      • Professionally crafted Presets make you sound like a pro with a single click. You can also create your own custom presets to share, save, or produce on the go
      • 6-months of Studio One Pro+ and Studio Magic software bundle included
      YouTube Video Thumbnail

      Downloads

      Support

    • Owner's Manual - Revelator io44 (Spanish)
    • Owner's Manual - Revelator io44 (English)
    • Owner's Manual - Revelator io44 (French)
    • Safety Document (Multi-Lingual)
    • Owner's Manual - Revelator io44 (German)
    • 2-Year Limited Non-Transferable Warranty (Multilingual)
    • Universal Control 4.5 Milestone Release Notes - English
    • Universal Control Software Reference Manual - English

      • Resources

    • Universal Control v4.5.0.102825 (Mac)
    • Universal Control v4.5.0.102825 (Windows)
    • Universal Control v4.3.3.100963 (Mac)
    • Universal Control v4.3.3.100963 (Windows)
    • Universal Control v4.3.2.100484 (Mac)
    • Universal Control v4.3.2.100484 (Windows)
    • Universal Control v4.3.1.100005 (Mac)
    • Need an older version? Click here

      • Highlights

      Studio One Pro 7 DAW Software Access Included.

      Your hardware registration includes a 6-month stackable membership to Studio One Pro+ featuring unlimited access to the latest version of Studio One Pro and all the extras.

      Analog classics under the hood.

      Revelator io44 provides State Space-modeled analog processing onboard with the same Fat Channel gate, compressor, and EQ our StudioLive Series III mixers offer. Like what you hear? All processing can be printed to your recording, or just used for your monitor mix, you decide.

      Ready to go live when you are.

      Revelator io44’s presets are stored on the mic, so you can take your sound with you. Connect directly to your iPad Pro, or grab your Camera Connection Kit and connect your Revelator to your Lightning- or USB-C-equipped iPhone or iPad. Only Revelator brings studio-quality sound to Facebook Live, IGTV, or anywhere else you stream from your mobile device.

      Specs

      Electronics

      Connectivity

      USB-C® Compatible USB 2.0 Connection (Bus-Powered)

      Headphone Jack

      1/8" TRRS Female (Stereo Headset Compatible)

      Inputs

      One - XLR Female, Balanced (Microphone), One - 1/4" TS Female, Unbalanced (Instrument), One - 1/8" TRS Female (Stereo Line Input)

      Line Out

      Two - 1/4" Balanced (Left and Right)

      Phantom Power

      +48 VDC, 10 mA

      Voltage

      USB Bus Powered

      General

      Color

      Black

      Product Name

      Revelator io44, Black

      Series

      Revelator™

      入力

      Instrument Inputs Frequency Response

      20 Hz to 20 kHz

      Instrument Inputs Gain Range

      40 dB

      Instrument Inputs Maximum Level

      +10 dBu

      Microphone Preamp Equivalent Input Noise

      -128 dBu

      Microphone Preamp Frequency Response

      20 Hz to 20 kHz

      Microphone Preamp Gain Control Range

      60 dB

      Microphone Preamp Input Impedance

      1.4 kΩ

      Microphone Preamp Maximum Input Level

      +10 dBu (±0.5 dBu, Minimum Gain)

      Microphone Preamp Total Harmonic Distortion

      0.005% (1 kHz, -1 dBFS, Minimum Gain)

      Measurements

      Product Depth

      3" (7.5 cm)

      Product Height

      2.3" (5.8 cm)

      Product Width

      5.35” (13.6 cm)

      その他

      Commodity Code

      8517620000

      Supported Sample Rates

      44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

      アウトプット

      Headphone Outputs Frequency Response

      20 Hz to 20 kHz

      Headphone Outputs Impedance Working Range

      32Ω to 300Ω

      Headphone Outputs Maximum Output

      30mW/Channel @56Ω

      Main And Line Outputs Frequency Response

      20 Hz to 20 kHz

      Main And Line Outputs Maximum Level

      +10 dBu

      Main And Line Outputs Total Harmonic Distortion

      0.003%

      パフォーマンス

      Digital Audio Bit Depth

      24-bit

      Digital Audio Dynamic Range

      96 dB
