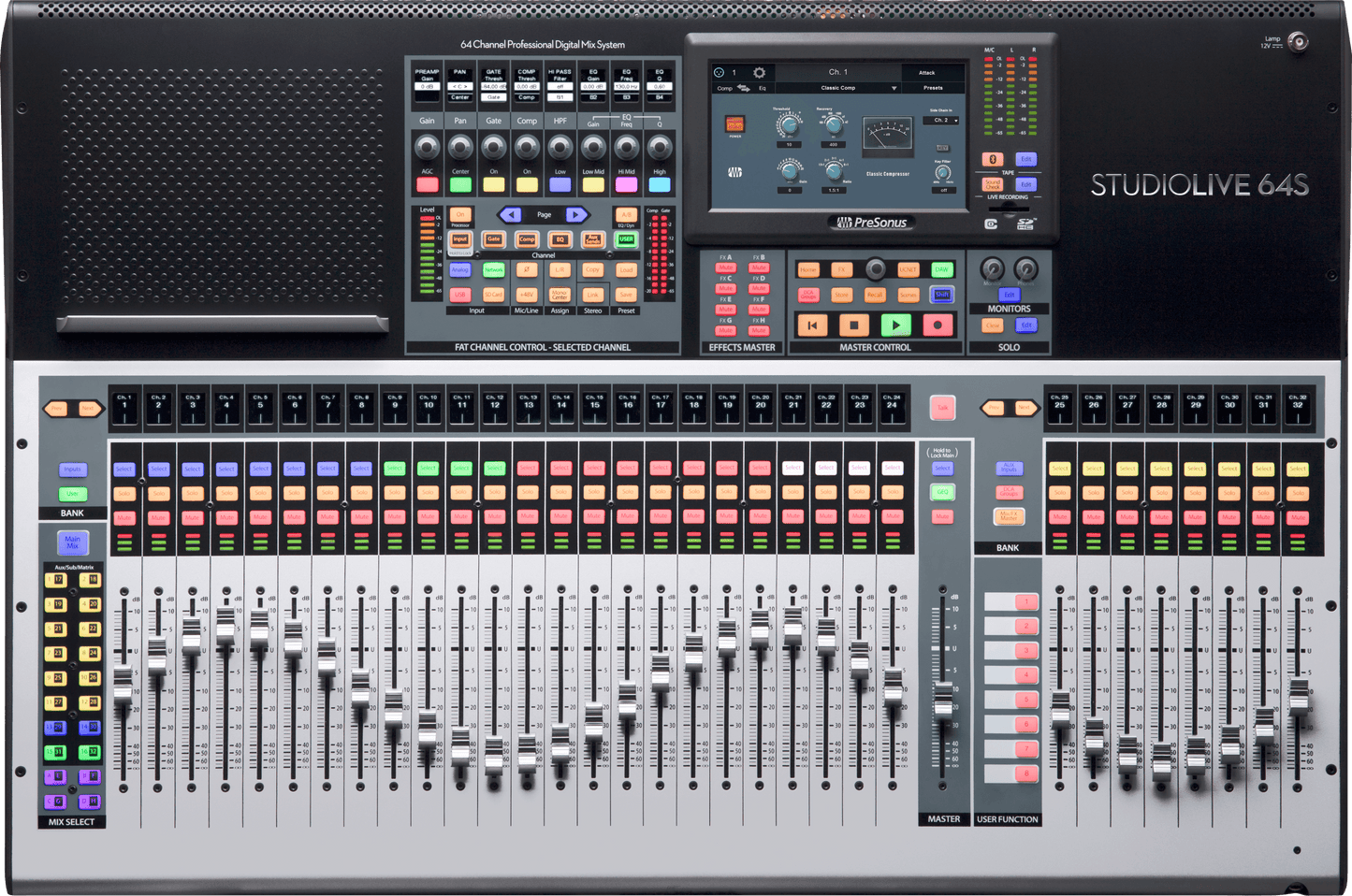

StudioLive® Series III 64S Digital Console Mixer
StudioLive® Series III 64S Digital Console Mixer
SKU: 2779200404
通常価格
¥611,600
通常価格
¥611,600
セール価格
¥611,600
単価
あたり
Our most powerful 64-channel digital mixer and USB audio interface with a complete suite of integrated software.
詳細を表示する
StudioLive® Series III 64S Digital Console Mixer
通常価格
¥611,600
通常価格
¥611,600
セール価格
¥611,600
単価
あたり
Overview
76チャンネルのStudioLive® 64Sとフル装備の統合ソフトウェアにより、PreSonus®は、設置型のサウンド、ツアー、レコーディングのための最もパワフルでフレキシブルなデジタル・コンソールを提供します。PreSonusのクアッドコアFLEX DSP Engineを搭載し、128チャンネル（64x64）のUSBレコーディング、76のミキシング・チャンネル、43のバス、526の驚異的なプロセッサー搭載。機能へのアクセスを制限するパスワードで保護されたユーザー・プロファイルや、プロジェクトごとに整理されたミキサー・シーンなどの機能により、StudioLive 64Sは理想的な環境を提供します。内蔵のAVBネットワークにより、Sステージ・ボックス、パーソナル・モニター・ミキサー、スイッチなどと統合することも可能です。32系統のFlexMixと24系統のDCAグループにより、合計76系統の入力を簡単に管理可能。また、ファット・チャンネル・プロセッシング・セクションは、各チャンネルと出力バスにヴィンテージスタイルのEQとコンプレッション・オプションを備えた拡張可能なプラグインを提供します。
Overview
Features
- Powerful and flexible 76-channel digital console available for installed sound, touring, and recording with quad-core FLEX DSP Engine powering 526 simultaneous processors
- 33 touch-sensitive motorized faders
- Fully recallable, 38-input, 40-channel digital mixing console
- 43 Mix buses: 32 FlexMixes (Aux-, Matrix-, or Subgroup- configurable) and 8 FX Mixes plus LCR Main Bus
- Built-in 64x64 AVB audio networking makes connecting other StudioLive Series III mixers, PreSonus NSB stage boxes, EarMix 16M personal monitor mixers plug-and-play
- Built-in 128-channel (64x64) USB interface - the most of any digital mixer on the market
- Onboard multitrack SD Card recorder with true Virtual Soundcheck
- FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
- Complete professional solution: suite of integrated software, including 12 months of Studio One® Pro + and Capture®
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Resources
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Superior sound
In 1995, PreSonus patented digital control over analog circuits with our first studio product. Building on this legacy, we created a separate digital volume-control circuit ahead of our lauded analog XMAX mic preamp design, providing the convenience of digital recall without sacrificing fidelity.
The FlexMix difference.
Highly configurable, the StudioLive 64S provides 16 FlexMixes that can be used as aux buses, subgroups, or matrix mixes and another 16 FlexMixes that can be configured as aux or subgroups for a total of 32. Eight dedicated effects buses provide a total of 40 mix buses plus an independent solo bus and an LCR main mix. You also get 24 DCAs to control groups of channels easily.
One-click recording
The StudioLive 64S is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!

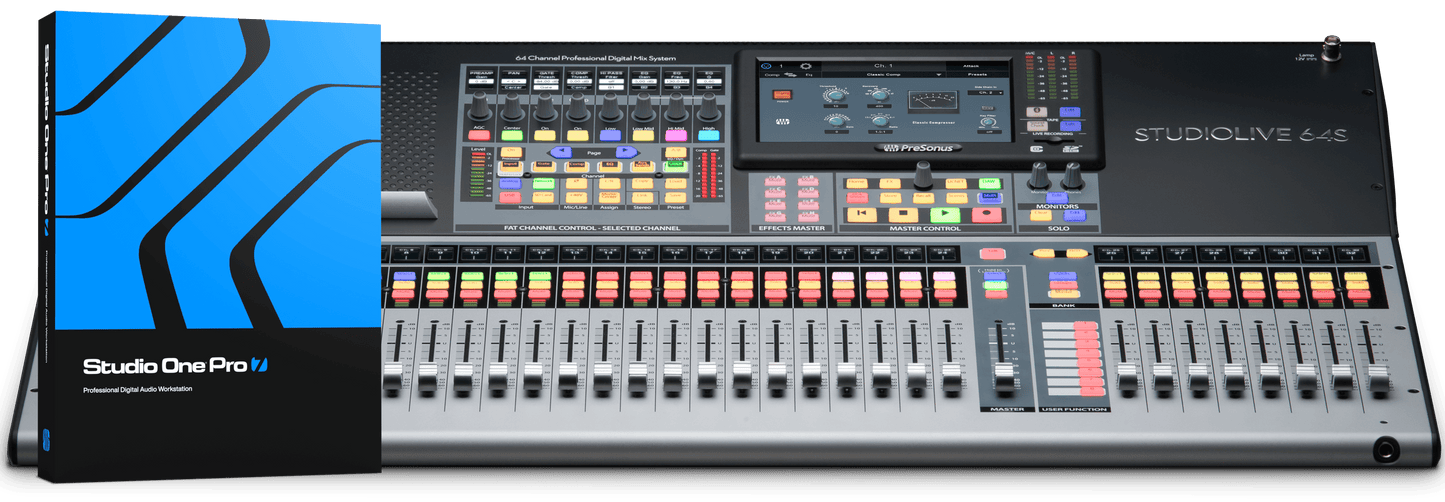

Studio One Pro 7 DAW Software License Included.
Your hardware registration includes a Studio One Pro 7 perpetual license (yours to keep) and 12 months of access to all the add-ons, exclusive content, and extras in Studio One Pro+.
Specs
Electronics
Headphone Jack
1/4" TRS Active Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
85W (Continuous)
Voltage
100-120V
General
Color
Gray
Product Name
StudioLive® Series III 64S Digital Console Mixer, Gray
Series
StudioLive®

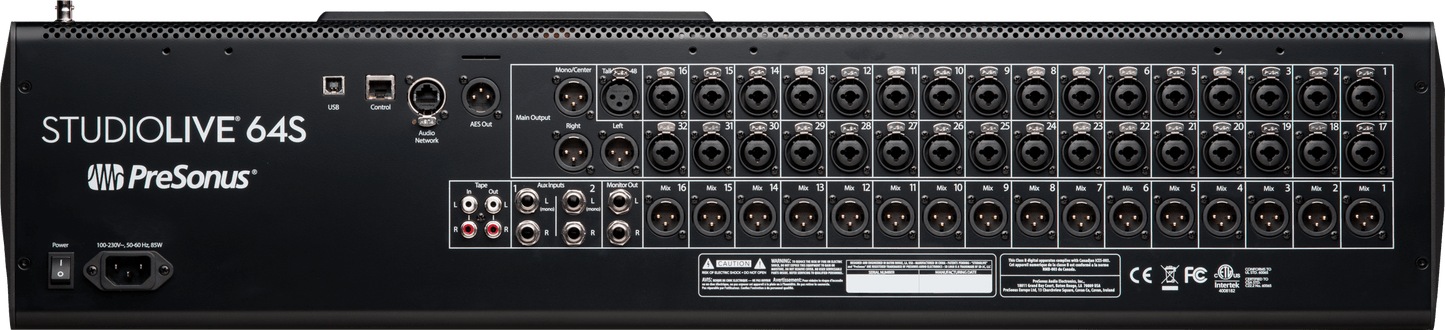

Hardware
Digital Audio AES EBU Output
XLR Male
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Bluetooth Input
4.1, Stereo
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Tape Connection Type
RCA Female, Unbalanced (Stereo Pair)
入力
Line Input Connection Type
1/4" TRS Female, Balanced
Line Inputs Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
=+18 dBu
Line Inputs Signal To Noise Ratio
94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Line Inputs Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Microphone Input Connection Type
XLR Female, Balanced
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Tape Maximum Input Level
=+12 dBu, ±0.5 dBu
Measurements
Product Depth
22.97” (583.84 mm)
Product Height
6.51” (165.36 mm)
Product Width
32.37” (822.21 mm)
その他
Digital Audio Internal Processing
32-Bit, Floating Point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Supported Sample Rates
48 kHz, 44.1 kHz
アウトプット
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS Female, Balanced
Line Outputs Maximum Output Level
+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
Tape Maximum Output Level
=+18 dBu, ±0.5 dBu
Tape Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
パフォーマンス
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
+18 dBu
Digital Audio Total System Latency
1.9 ms
