HP4 4-Channel Headphone Amplifiers
HP4 4-Channel Headphone Amplifiers
Couldn't load pickup availability
Overview
Tired of straining to hear underpowered headphones? The PreSonus® HP4 headphone-distribution system is louder than you're ever likely to need for session and stage use. (Be careful with that level control!) Yet the sound is clear and clean, with a wide dynamic range. At last, everybody will be able to hear!
Simplicity is the HP4's hallmark. It offers left and right line inputs, left and right line outputs with level control, and four headphone outs. You can sum the stereo signals to mono, adjust the individual headphone levels, and mute the rear-panel Monitor outputs while leaving the headphone outputs active. So while the HP4 is simple to set up and use, it has all the features you need to create a versatile headphone system.
The compact HP4 can sit on a tabletop or can be screw-mounted to a standard rack tray (not included), where it requires just one-third of a rackspace. If your needs grow, you can use the line outputs to feed the inputs of a second HP4 or the larger HP60 headphone amplifier.
So quit struggling with mediocre headphone amps. Get the PreSonus HP4 and hear everything loud and clear. You owe it to your music.
Overview
Features

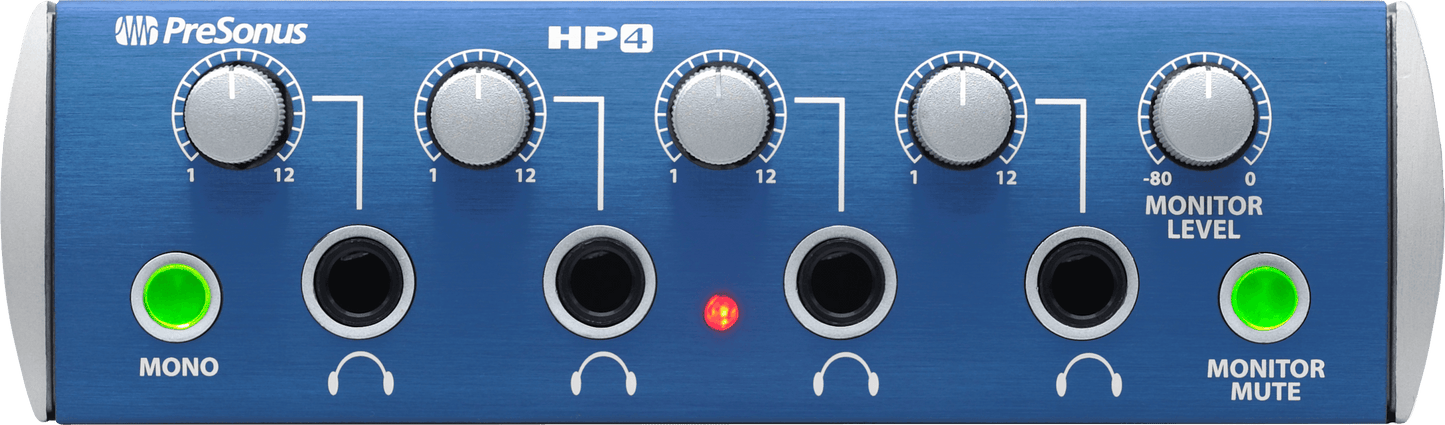

- 4 screaming-loud (130 mW per channel) stereo ¼-inch headphone outputs (front panel)

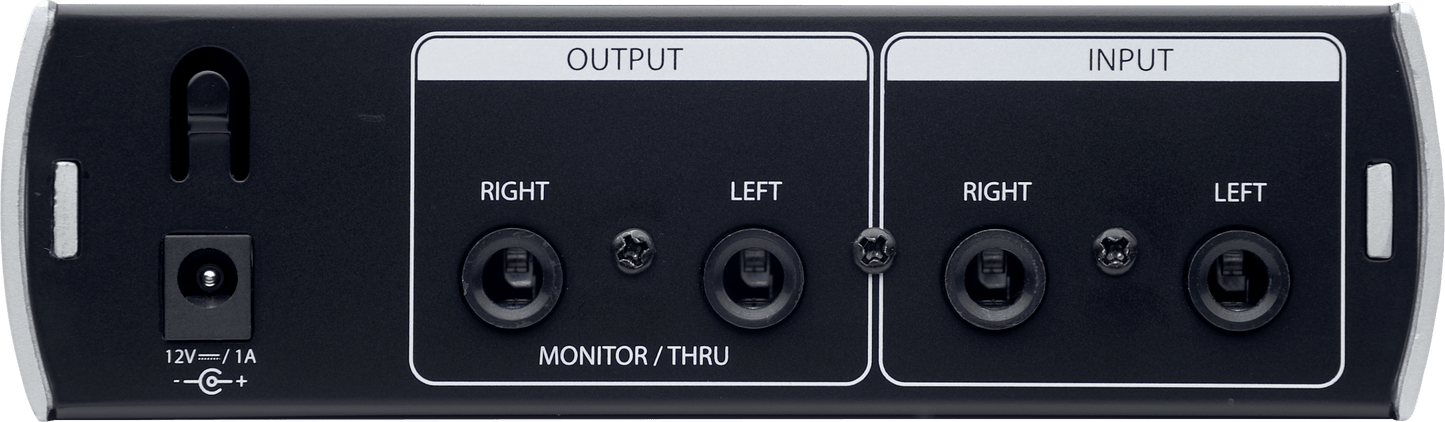

- 2 balanced ¼-inch line outputs (monitor outputs)
- 2 balanced ¼-inch line inputs
- Headphone level control for each channel
- Mono summing switch for each channel
- Monitor level control and mute switch
- Daisy-chain multiple units via monitor outputs
- Compact 1/3U rack-mount chassis
- Sealed, detented, metal rotary controls
- External 16 VAC power supply
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Don't see what you're looking for?
Log in to your my.presonus.com account.
Specs
VoltageRequirements
100-240 VAC, 50-60 Hz
Color
Blue
Product Name
HP4 4-Channel Headphone Amplifier, Blue, 120V NA
Series
Headphone Amplifiers
Headphone Amplifier Input Connection Type
1/4" TRS, Balanced
Headphone Amplifier Input Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Amplifier Input Impedance
10 kΩ
Headphone Amplifier Input Maximum Input Level
+18 dBu, <0.5% THD+N, unity gain
Headphone Amplifier Input Total Harmonic Distortion
0.0025%, 1 kHz, unity gain
Product Depth
5.5" (139.7 mm)
Product Height
1.75" (44.45 mm)
Product Height/Length
1.75" (44.45 mm)
Product Width
5.5" (139.7 mm)
Power Cable
+12 VDC, 1000 mA, Center Pin Positive
Headphone Outputs Frequency Response
20 Hz - 20 kHz, ±0.5 dB, 60Ω Load
Headphone Outputs Impedance Working Range
32Ω to 600Ω
Headphone Outputs Maximum Output
130 mW/Ch., <0.5% THD+N, 60Ω load
Monitor Output Connection Type
1/4" TRS, Balanced
Monitor Output Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Monitor Output Impedance
51Ω
Monitor Output Maximum Output Level
+18 dBu, <0.5% THD+N
Monitor Output Total Harmonic Distortion
0.0025%, 1 kHz, unity gain
