Our professional-grade 18x18, 24-bit / 192 kHz, USB-C recording audio interface with Studio One Pro+ access included.
View full details
Studio 1824c
Regular price
¥79,500
Regular price
¥79,500
Sale price
¥79,500
Unit price
per
Overview
PreSonus® was a pioneer in high-channel-count audio interfaces and has spent the last 20 years creating the best audio interfaces for recording large sessions. Building on this legacy, the Studio 1824c provides amazing sound-quality with eight of PreSonus' lauded XMAX analog mic preamps onboard and pristine 24-bit 192 kHz conversion. Add two low-noise instrument preamps, balanced line-level inputs, and an ADAT input to add 8 more channels whenever you need them, and you have an audio interface ready to record just about any session.
When you have the right tools, any job is easier and faster to finish. High-quality converters and PreSonus' professional-grade XMAX mic preamps capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX mic preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound, so you'll hear every breath, transient, and detail in your recordings. Professional input and output metering let you keep an eye on your levels. A flexible DSP mixer lets you create four discrete near-zero-latency monitor mixes. Front-panel Mute, Mono, and level controls let you work with your main mix.
Whether you're upgrading your studio or building a new space for your band to record, the Studio 1824c has you covered with superior mic preamps, expandable inputs, and powerful, easy-to-use onboard monitor mixing to give you the world-class results you want.
Overview
Features
- Up to 18 inputs/20 outputs simultaneously (8x8 at 192 kHz)
- 2 mic/instrument/line inputs with XMAX Class A mic preamps
- 6 mic/line inputs with XMAX Class A mic preamps
- 8 channels of ADAT Optical I/O (4 channels at 96 kHz)
- 2 balanced ¼-inch TRS main outputs and 8 balanced ¼-inch TRS line outputs for monitor mixing, all DC coupled for sending control voltages
- 2 stereo headphone outputs with individual level controls
- Stereo S/PDIF digital I/O and MIDI In/Out
- 18x8 onboard DSP monitor mixer

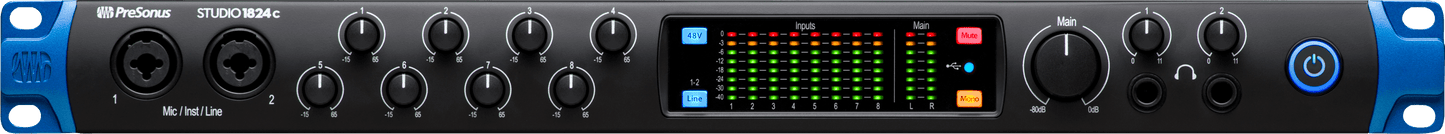

- Front-panel level controls plus Mono and Mute buttons for the main outputs
- True +48V phantom power for condenser microphones (global)
- 10 ladder-style 8-LED level meters (8 input, 2 main output)
- 24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
- Includes 12-months of Studio One Pro+ and Studio Magic Software Suite
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Resources
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights

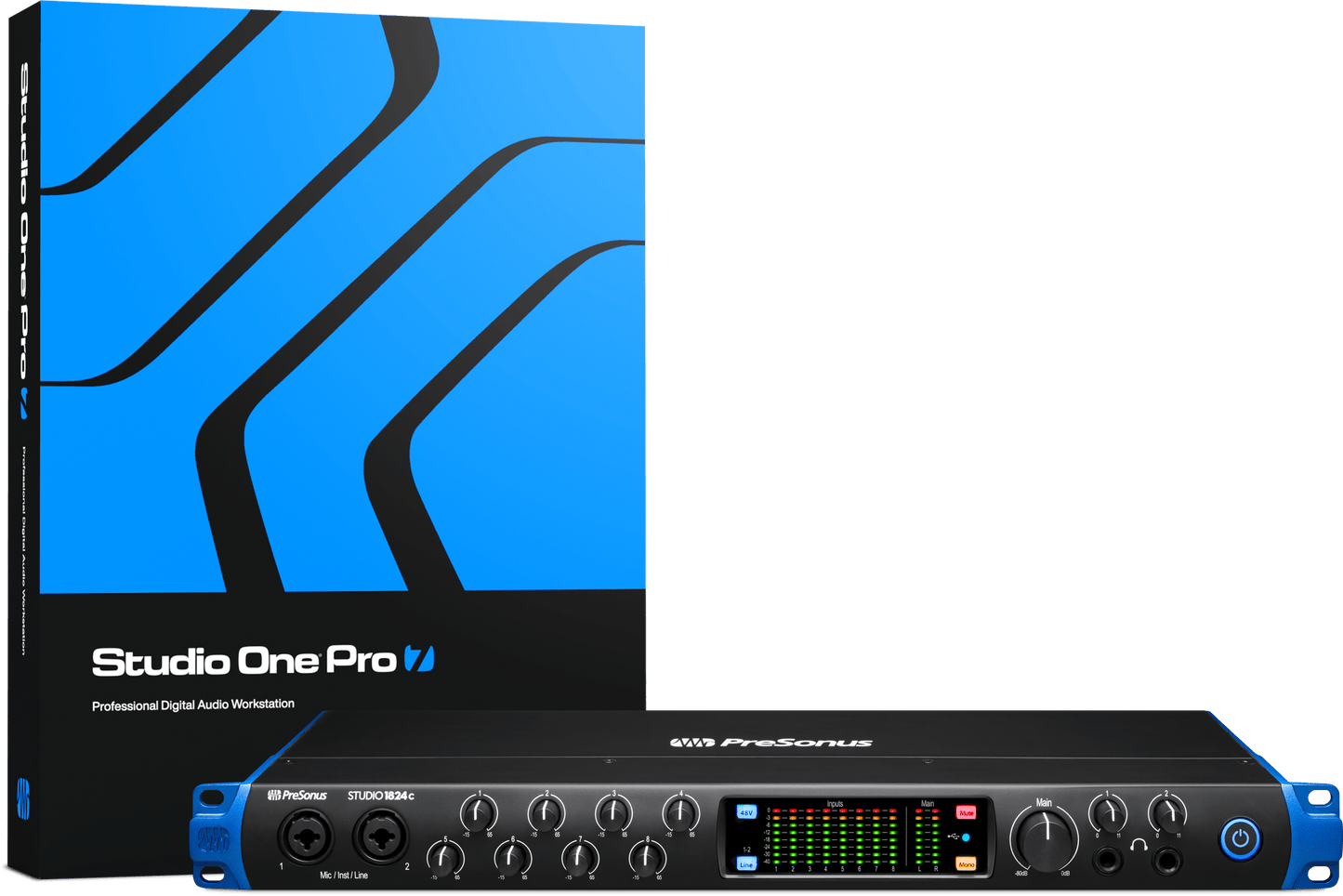

Studio One Pro 7 DAW Software Access Included.
Your hardware registration includes a 6-month stackable membership to Studio One Pro+ featuring unlimited access to the latest version of Studio One Pro and all the extras.
Specs
Electronics
Connectivity
USB-C®
Headphone Jack
1/8" TRS Active Stereo
Inputs
Eight - Eight Combo Mic/Instrument/Line Inputs (XLR Female Balance, 1/4" TS Female Unbalanced (Inst))
Line Out
Four - 1/4" TRS Balanced, DC Coupled
Phantom Power
+48 VDC
Voltage
120V
General
Color
Black
Product Name
Studio 1824c, Black, 120V
Series
Studio
Inputs
Instrument Inputs Dynamic Range
112 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response
20 Hz - 20 kHz (Minimum Gain)
Instrument Inputs Gain Range
80 dB
Instrument Inputs Maximum Level
+15 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range
112 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response
20 Hz - 20 kHz (Unity Gain)
Line Inputs Gain Range
40 dB
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+21 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion
0.005% (1 kHz, +18 dBu, Minimum Gain)
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Dynamic Range
110 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise
-128 dBu (A-Weighted, 20 kHz BW, Rs=150Ω, Maximum Gain)
Microphone Preamp Frequency Response
20 Hz - 20 kHz (Unity Gain)
Microphone Preamp Gain Control Range
80 dB
Microphone Preamp Input Impedance
1.4 kΩ
Microphone Preamp Maximum Input Level
+16 dBu, Minimum Gain
Microphone Preamp Total Harmonic Distortion
0.005% (1 kHz, 0dBu, Unity Gain)
Measurements
Product Depth
5.5" (140 mm)
Product Height
1.75" (44.45 mm)
Product Width
19" (483mm)
Miscellaneous
Power Cable
12 VDC, External Power Supply
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 kHz (kHz)
Output
Headphone Outputs Dynamic Range
103 dB (A-weighted, 1 kHz, Unity Gain)
Headphone Outputs Frequency Response
20 Hz - 20 kHz (Unity Gain)
Headphone Outputs Impedance Working Range
32Ω to 600Ω
Headphone Outputs Maximum Output
150 mW/Channel (60Ω Load)
Headphone Outputs Total Harmonic Distortion
0.250% (1 kHz, 150 mW, Unity Gain)
Line Outputs Connection Type
1/4" TRS Female
Main And Line Outputs Dynamic Range
108 dB (A-Weighted, Unity Gain)
Main And Line Outputs Frequency Response
20 Hz - 20 kHz (Unity Gain)
Main And Line Outputs Maximum Level
+18 dBu (Balanced)
Main And Line Outputs Total Harmonic Distortion
0.004% (1 kHz, -1 dBFS, Unity Gain)
Main Outputs Connection Type
1/4" TRS Female
Performance
Digital Audio Bit Depth
24 Bit
Digital Audio Dynamic Range
114 dB
